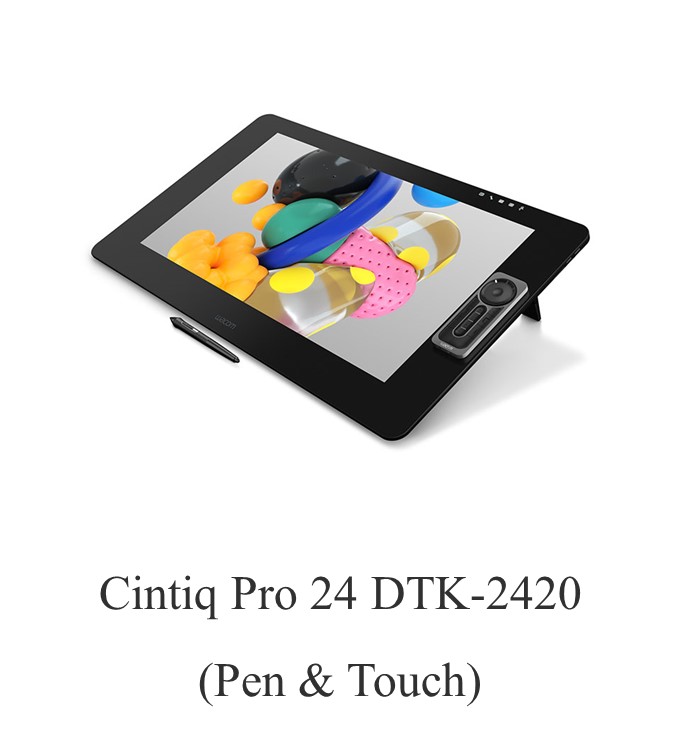

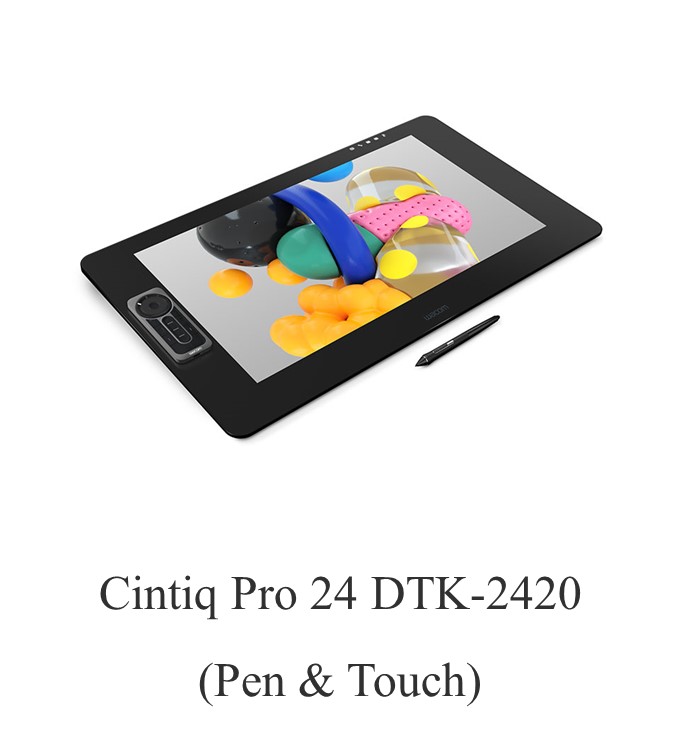

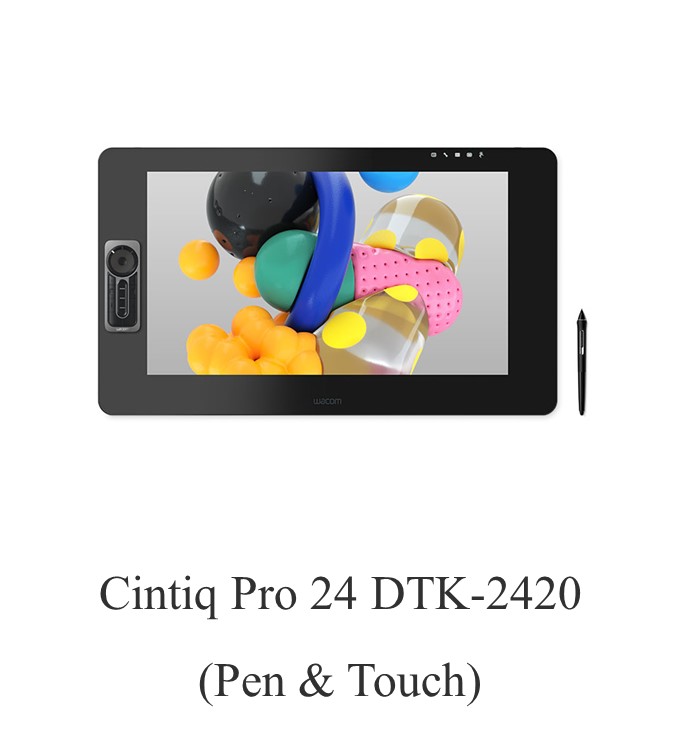

Wacom Cintiq Pro 24 DTH-2420 Creative Pen Display Touch

+ Add to Wishlist

Color

Brand: Wacom

  • Share

  • Product TypeCreative Pen Display 24
  • Model numberDTH-2420 creative pen display touch
  • Size677 x 394 x 47 mm (26.65 x 15.5 x 1.9 inch)
  • Weight7 kg (15.43 lbs) without optional stand
  • Screen Size (Measured Diagonally)59.94 cm / 23.59 in
  • TechnologyIPS UHD high brightness panel
  • Displayable Colors (maximum)1.07 billion colors (10 bits color)
  • Aspect Ratio16:9
  • Viewing Angle176° (88°/88°) H, (88°/88°) V
  • Contrast Ratio1000:1
  • Brightness350 cd/m2
  • Response Rate14 ms
  • Active Area522 X 294 mm (20.55 X 11.57 inch)
  • Color Gamut99% Adobe RGB
  • Industry Standard Pre-sets6500° K whitepoint default
  • Graphics InputUSB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution).
  • Multi-TouchYes - on touch model only (DTH-2420)
  • PenWacom Pro Pen 2
  • Pressure Levels8192, both pen tip and eraser
  • Tilt Range40 degrees
  • Tilt Recognition±60 levels
  • TypePressure-sensitive, cordless, battery-free
  • SwitchesTip switch, 2 side switches, eraser
  • Nibs10 (6 standard, 4 felt) in pen stand
  • Pen Box/ HolderYes - Pen Holder
  • Pen StandYes
  • GripLatex-free silicone rubber
  • TechnologyPatented electromagnetic resonance method
  • Resolution5080 lpi
  • ExpressKeys™17 customizable, application-specific on included ExpressKey™ Remote
  • Touch RingYes - on included ExpressKey Remote
  • Touch StripsNo
  • Rocker Ring And Home ButtonYes - on included ExpressKey Remote
  • Radial MenuYes
  • Precision ModeYes
  • Display ToggleYes
  • Dedicated Pan, Scroll, Zoom, Brush SizeYes
  • ExpressKey™ Remote Dimensions135 x 52 x 10 mm (5.3 x 2.0 x 0.4 inch)
  • ExpressKey™ Remote Continuous OperationUp to 160 hours, if a key is pressed every 30 seconds
  • ExpressKey™ Remote Charge TimeUp to 2 hours
  • Stand AdjustabilityIntegrated pop-out legs for 20° angle (5° angle without legs)
  • Stand OrientationRight or left-handed use
  • Cables IncludedUSB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI 2.0 to HDMI2.0 cable (3m),USB-C to USB-C cable (1.5m), DisplayPort to Mini DisplayPort adapter, microUSB to USB cable (30 cm; for ExpressKey Remote)
  • PC and Mac ConnectionUSB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
  • Ports included4 x USB3 ports*
    1 x USB C port
    1 x HDMI2.0 port
    1 x DP port
    2 USB-A Ports (one for ExpressKey Remote dongle)

    *When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.
  • AudioAudio headset jack, built-in microphone
  • Power Supply Input100 to 240 VAC, 50/60Hz
  • Power Supply Output20 VDC, 2.25 A (max)
  • Power ConsumptionPower ON mode (Max.): 100 W
    Power sleep mode: 2.0 W or lower
    Power OFF mode: 0.5 W or lower
  • BatteryRechargable Li-ion battery on included ExpressKey Remote
  • SecurityKensington® Lock Port (lock purchased separately)
  • System RequirementsPC: Windows® 7 or later (latest service pack/build), Mac: OS X 10.11 or later (latest update),
    USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
  • What's IncludedWacom Cintiq Pro 24 touch
    Wacom Pro Pen 2 with 4-color pen ring set
    ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)
    Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool
    Pen holder,
    180W AC adaptor and 1.8m power cable
    1.5m USB-C to USB-C cable,
    3m DisplayPort to DisplayPort cable
    3m HDMI2.0 to HDMI2.0 cable
    3m standard USB-A to USB-A cable
    DisplayPort to Mini DisplayPort adapter
    Quick Start Guide
    Regulation sheet
    Cleaning cloth
  • CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional AccessoriesWacom Ergo Stand
    Wacom Cintiq Pro Engine
    Wacom Color Manager
    Wacom Pro Pen 3D
    Wacom Keyboard, Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2
    Additional previous generation pens (Classic, Airbrush, Art, Pro Pen)
    Replacement ExpressKey Remote
    Replacement Wacom Pro Pen 2
  • Limited Warranty2 years in USA, Canada, Latin America and China
  • Specification numbers like display size, active area and weight are approximate. Specifications are subject to change.
