- Product TypeCreative Pen Display
- Model NumberDTK-1660/K1-CX
- Resolution1920 x 1080 (Full HD)
- Display Size422 x 285 x 24.5mm
16.6 x 11.2 x 1.0 in - Display Weight1.9 kg without optional stand
- Screen Size (Measured Diagonally)39.6 cm / 15.6 in
- Technologya-Si Active Matrix TFT LCD (IPS)
- Displayable Colors (maximum)16.7 million
- Aspect Ratio16:9
- Viewing Angle176/176 degree (typ) / 140/140 degree (min)
- Contrast Ratio1000:1 (typ) / 600:1 (min)
- Luminance210 cd/m2 (typ) (including glass)
White luminance (center) 180 cd/m2 (min) - Response time25 ms
- Active Area345 x 194 mm
(13.6 x 7.6 in) - Color Gamut72% NTSC (CIE1931) typical
- Color Temperature / Custom Color9300K
6500K
5000K
Custom RGB - Graphics InputNone
- Multi-TouchNo
- PenWacom Pro Pen 2
- Pressure Levels8192, both pen tip and eraser
- Tilt Range60 degrees
- Tilt Recognition±60 levels
- Pen TypePressure-sensitive, cordless, battery-free
- Pen Switches2 side switches
- Pen HolderDetachable Pen holder with 3 replacement nibs (standard) and nib removal tool
- Pen StandNo
- GripLatex-free silicone rubber
- TechnologyPatented electromagnetic resonance technology
- Resolution5080 lpi
- ExpressKeys™On optional ExpressKey Remote
- Touch RingOn optional ExpressKey Remote
- Touch StripsNo
- Radial MenuYes
- Precision ModeYes
- Display ToggleYes
- Dedicated Pan, Scroll, Zoom, Brush SizeYes

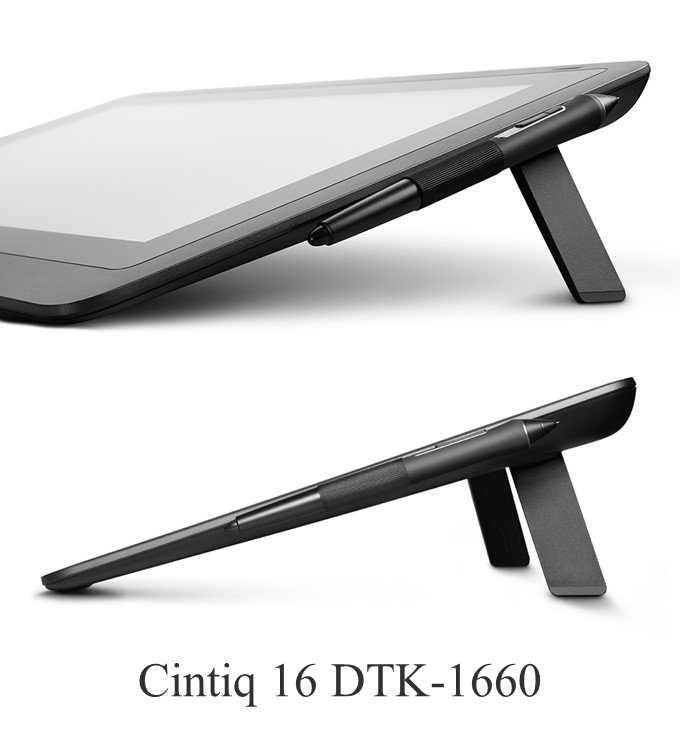

- Stand Adjustability19 degrees using built-in, fold-out legs
- Cables Included3 in 1 cable (with HDMI 1.4, USB 2.0 and AC adaptor) Power Cable (1.8m)
- PC And Mac ConnectionHDMI port and standard USB-A port
- Ports included3-in-1 cable port only
- AudioNo
- Power Supply Input100 to 240 VAC, 50/60Hz
- Power Supply Output12 VDC, 3A (max)
- Power ConsumptionPower ON mode (MAX): 27 W
Power sleep mode: 0.5 W or less (non-connection USB cable)
Power OFF mode: 0.5 W or lower - BatteryNo
- SecurityKensington® Lock Port (lock purchased separately)
- System RequirementsPC: Windows® 7 or later (latest service pack/build), OS X 10.12 or later (latest update), Internet access for driver download.
- What's IncludedWacom Cintiq 16 pen display
Wacom Pro Pen 2
Detachable pen holder with 3 replacement nibs (standard) and nib removal tool
3-in-1 cable (1.8m)
AC adaptor (12V, 3A, 36W)
Power cable (1.8m)
Quick Start Guide
Warranty card (Japan, Asia Pacific, China only)
Regulation sheet - CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
- Additional AccessoriesWacom Adjustable Stand
Wacom Pro Pen 2
Wacom Pro Pen 3D
ExpressKeyTm Remote
Wacom Keyboard
Wacom Softcase Large
Replacement Wacom nibs (standard) for Wacom Pro Pen 2
Additional previous generation pens (Classic, Airbrush, Art, Pro Pen) - Limited Warranty1 year in USA, Canada, and Latin America
