• Powered by NVIDIA GeForce 210 GPU
• Integrated with industry's best 1GB DDR3 memory and 64-bit memory interface
• Features Dual link DVI-I/ D-SUB/HDMI with HDCP protection
• Support NVIDIA® CUDA™ Technology
• Support NVIDIA® PhysX™ Technology
• *Minimum 300W or greater system power supply with

Graphics Processing

GeForce 210

Core Clock

520 MHz

Process Technology

40 nm

Memory Clock

1200 MHz

Memory Size

1 GB

Memory Type

DDR3

Memory Bus

64 bit

Card Bus

PCI-E 2.0

Digital max resolution

2560 x 1600

Multi-view

2

Card size

H=13 L=167 W=69 mm

PCB Form

Low Profile

DirectX

10.1

OpenGL

3.1

Recommended PSU

300W

Accessories

HDMI+DVI low profile bracket x1
D-SUB low profile bracket x1

Analog max resolution

2048 x 1536

Shader Clock

1237 MHz

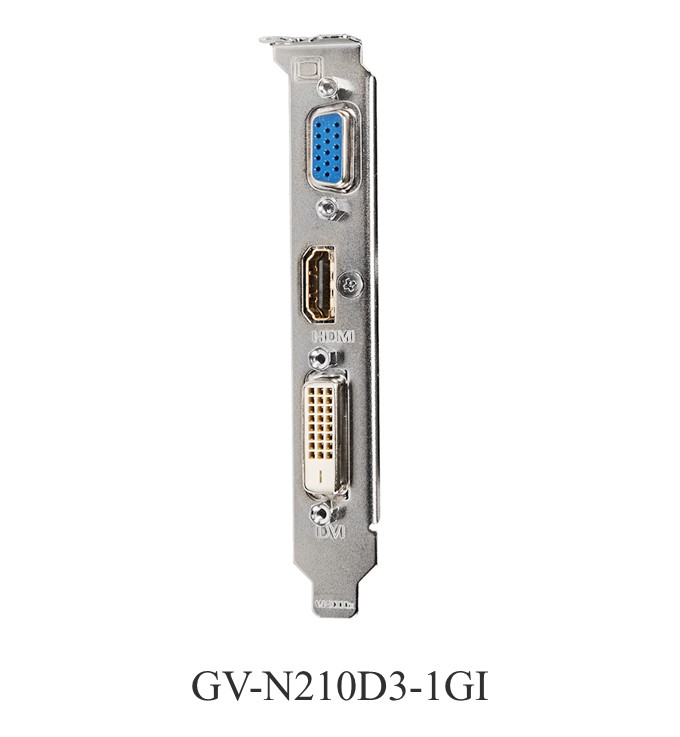

I/O

HDMI*1
DVI-I*1
D-sub*1

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
