- Built-in
Intel® Celeron™ J3455 (up to 2.3 GHz) quad-core processor
- GIGABYTE Ultra Durable™ Technology
- Dual
channel DDR3L SO-DIMM slot support
- All
Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- Dual
GbE LAN with high ESD Protection
- Extra
two SATA 6Gb/s interfaces for more system storage connectivity
- High
Quality Audio Capacitors
- PCI
interface for wide-range expansion card selections
- CPU
- Built
in with an Intel® Quad-Core Celeron® J3455
SoC (2.3 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to
avoid damage to these components.
- 2
MB Cache
- Memory
- 2 x
DDR3L SO-DIMM sockets supporting up to 16 GB of system memory
- Dual
channel memory architecture
- Support
for DDR3L 1866/1600/1333 MHz memory modules
- Support
for non-ECC memory modules
(Please refer "Memory Support List" for more
information.)
Integrated in the SoC:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
- Audio
- Realtek® ALC887
codec
- High
Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio
module and enable the multi-channel audio feature through the audio
driver.
- LAN
- 2 x
Realtek® GbE LAN chips (10/100/1000 Mbit)
- Expansion
Slots
- 1 x
PCI slot
- Storage
Interface
Integrated in the SoC:
- 2 x
SATA 6Gb/s connectors (SATA3 0, SATA3 1)
ASMedia® ASM1061 chip:
- 2 x
SATA 6Gb/s connectors (SATA3 2, SATA3 3)
- USB
Integrated in the SoC:
- 4 x
USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
SOC + GENESYS LOGIC USB 2.0 Hub:
- 6 x
USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through
the internal USB headers)
- Internal
I/O Connectors
- 1 x
24-pin ATX main power connector
- 1 x
4-pin ATX 12V power connector
- 4 x
SATA 6Gb/s connectors
- 1 x
CPU fan header
- 1 x
system fan header
- 1 x
front panel header
- 1 x
front panel audio header
- 1 x
USB 3.1 Gen 1 header
- 2 x
USB 2.0/1.1 headers
- 1 x
parallel port header
- 1 x
Clear CMOS jumper
- 1 x
chassis intrusion header
- 1 x
TPM header

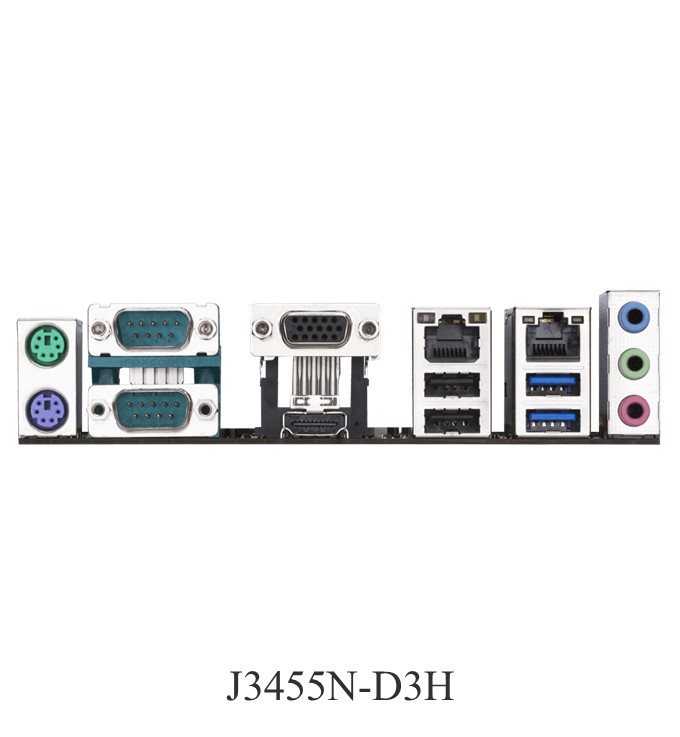

- Back
Panel Connectors
- 1 x
PS/2 keyboard port
- 1 x
PS/2 mouse port
- 2 x
serial ports
- 1 x
D-Sub port
- 1 x
HDMI port
- 2 x
USB 3.1 Gen 1 ports
- 2 x
USB 2.0/1.1 ports
- 2 x
RJ-45 ports
- 3 x
audio jacks (Line In, Line Out, Mic In)
- I/O
Controller
- iTE® I/O
Controller Chip
- H/W
Monitoring
- Voltage
detection
- Temperature
detection
- Fan
speed detection
- Fan
speed control
* Whether the fan speed control function is supported will depend on the
cooler you install.
- BIOS
- 1 x
64 Mbit flash
- Use
of licensed AMI UEFI BIOS
- PnP
1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique
Features
- Support
for Xpress Install
- Support for @BIOS
- Support
for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
- Bundled
Software
- Norton® Internet
Security (OEM version)
- Operating
System
- Support
for Windows 10 64-bit
- Form
Factor
- Mini-ITX
Form Factor; 17.0cm x 17.0cm
- Remark
- Due
to different Linux support condition provided by chipset vendors, please
download Linux driver from chipset vendors' website or 3rd party website.
- Most
hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we
will update them on the GIGABYTE website.
-
* The entire materials provided herein are for reference
only. GIGABYTE reserves the right to modify or revise the content at anytime
without prior notice.
* Advertised performance is based on maximum theoretical interface values from
respective Chipset vendors or organization who defined the interface
specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for
system usage and therefore the actual memory size is less than the stated
amount.
