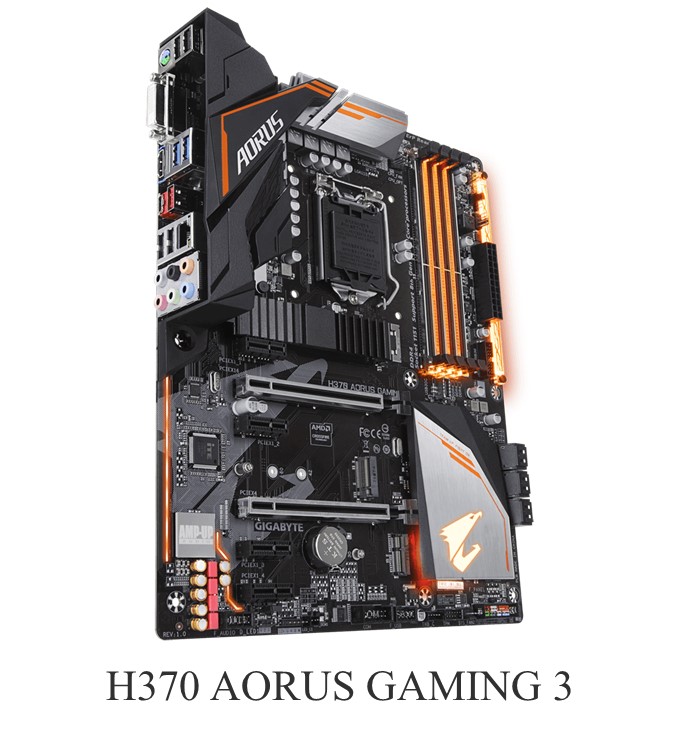

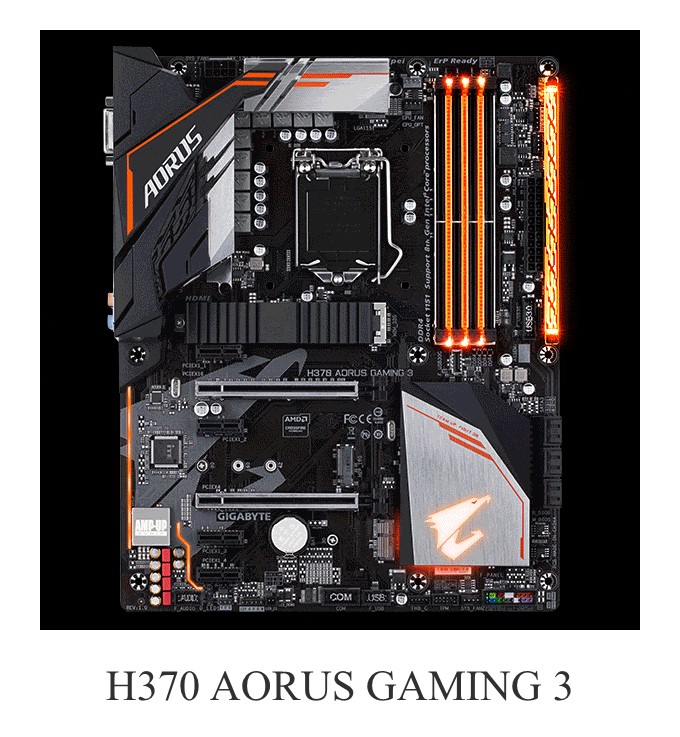

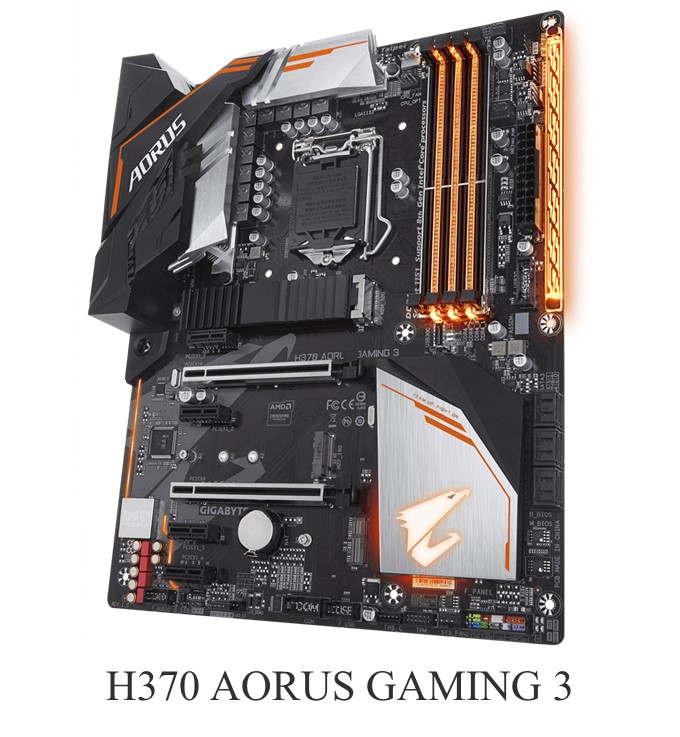

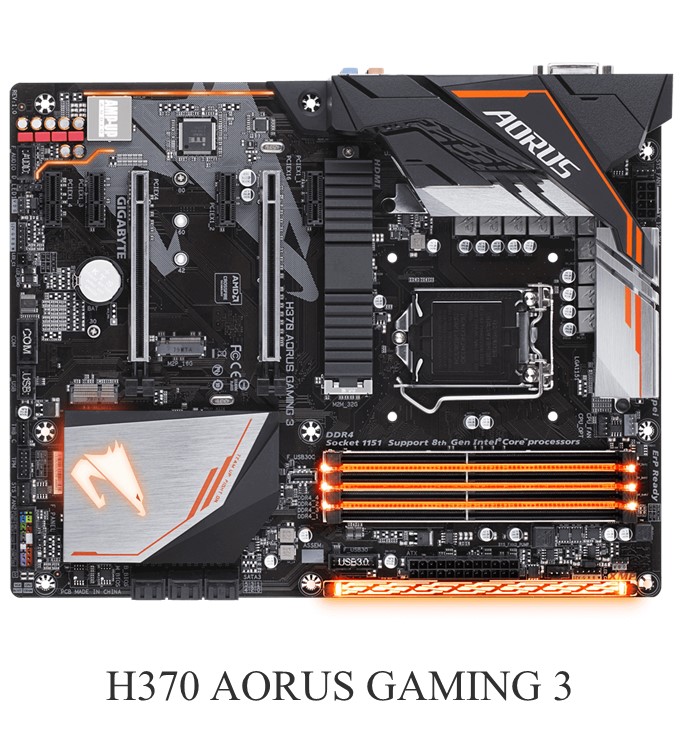

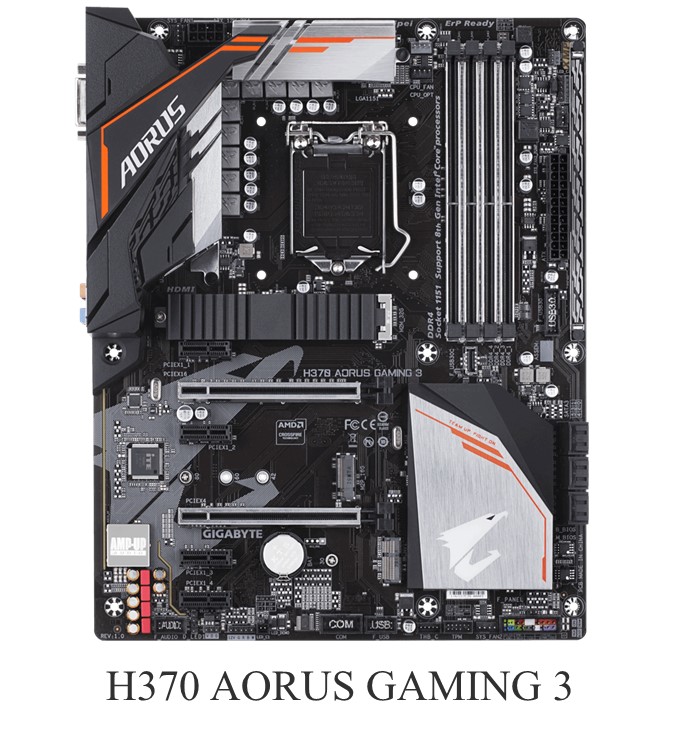

- Supports
9th and 8th Gen Intel® Core™ Processors
- Dual
Channel Non-ECC Unbuffered DDR4
- New
Hybrid Digital PWM Design
- Intel® CNVi
802.11ac Wave2 2T2R WIFI Upgradable
- High
Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Immersive
Gaming ViBes with ALC1220-VB and WIMA audio capacitors
- Dual
Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA
interface
- RGB
FUSION 2.0 with Multi-Zone Digital LED Light Show design, support digital
LED & RGB LED strips
- Intel® Native USB 3.1 Gen2 with USB Type-C™ and Type-A
- Intel® USB 3.1 Gen1 USB Type-C™
- Intel® GbE
LAN with cFosSpeed Internet Accelerator Software
- CEC
2019 Ready, Save the Power as Easy as One Click
- Smart
Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with
FAN STOP
- Swappable
Overlay for Accent LED
- Intel® Optane™ Memory Ready
CPU
- 1. Support
for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
in the LGA1151 package
- 2. L3
cache varies with CPU
(Please refer "CPU Support List" for more
information.)
Chipset
- 1. Intel® H370
Express Chipset
Memory
- 1. 4
x DDR4 DIMM sockets supporting up to 64 GB of system memory
- 2. Dual
channel memory architecture
- 3. Support
for DDR4 2666/2400/2133 MHz memory modules
- 4. Support
for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- 5. Support
for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- 6. Support
for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation
Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more
information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD
Graphics support:
- 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
- 2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
- 1. Realtek® ALC1220-VB
codec
- 2. High
Definition Audio
- 3. 2/4/5.1/7.1-channel
- 4. Support
for S/PDIF Out
LAN
- 1. Intel® GbE
LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1. 1
x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16 slot.
- 2. 1
x PCI Express x16 slot, running at x4 (PCIEX4)
- 3. 4
x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 4. 1
x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless
module (CNVI)
* The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI
module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed
to the F_USB2 header becomes unavailable.
Multi-Graphics Technology
- 1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
Chipset:
- 1. 1
x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD
support) (M2M_32G)
- 2. 1
x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD
support) (M2P_16G)
- 3. 6
x SATA 6Gb/s connectors
4. Support
for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices
for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB
Chipset:
- 1. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
- 2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
- 3. 1
x USB 3.1 Gen 2 Type-A port (red) on the back panel
- 4. 4
x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the
internal USB header)
- 5. 6
x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the
internal USB header)
Internal I/O Connectors
- 1. 1
x 24-pin ATX main power connector
- 2. 1
x 8-pin ATX 12V power connector
- 3. 1
x CPU fan header
- 4. 1
x water cooling CPU fan header
- 5. 2
x system fan headers
- 6. 1
x system fan/water cooling pump header
- 7. 2
x digital LED strip headers
- 8. 2
x digital LED strip power select jumpers
- 9. 2
x RGB (RGBW) LED strip headers
- 10. 6
x SATA 6Gb/s connectors
- 11. 2
x M.2 Socket 3 connectors
- 12. 1
x front panel header
- 13. 1
x front panel audio header
- 14. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
- 15. 1
x USB 3.1 Gen 1 header
- 16. 1
x USB 2.0/1.1 header
- 17. 1
x serial port header
- 18. 1
x S/PDIF Out header
- 19. 1 x Thunderbolt™ add-in card connector
- 20. 1
x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module
only)
- 21. 1
x Clear CMOS jumper

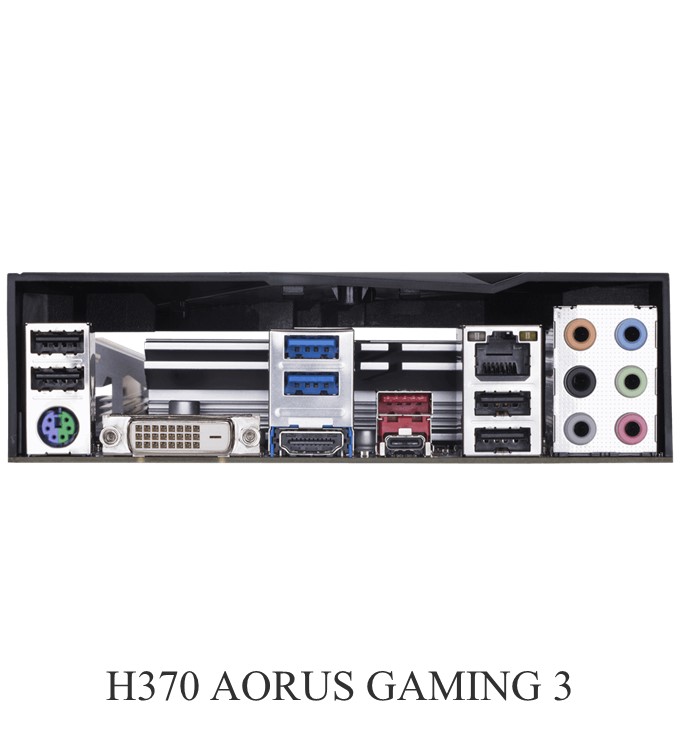

Back Panel Connectors
- 1. 1
x PS/2 keyboard/mouse port
- 2. 4
x USB 2.0/1.1 ports
- 3. 1
x DVI-D port
- 4. 1
x HDMI port
- 5. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
- 6. 1
x USB 3.1 Gen 2 Type-A port (red)
- 7. 2
x USB 3.1 Gen 1 ports
- 8. 1
x RJ-45 port
- 9. 6
x audio jacks
I/O Controller
- 1. iTE® I/O
Controller Chip
H/W Monitoring
- 1.
Voltage detection
- 2.
Temperature detection
- 3.
Fan speed detection
- 4.
Water cooling flow rate detection
- 5.
Overheating warning
- 6.
Fan fail warning
- 7.
Fan speed control
* Whether the fan (pump) speed control function is supported
will depend on the fan (pump) you install.
BIOS
- 1.
2 x 128 Mbit flash
- 2.
Use of licensed AMI UEFI BIOS
- 3. Support for DualBIOS™
- 4.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0
Unique Features
- 1.
Support for APP Center
- * Available applications in APP Center may vary by
motherboard model. Supported functions of each application may also vary
depending on motherboard specifications.
- 3D OSD
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Easy RAID
- Fast Boot
- Game Boost
- ON/OFF Charge
- Platform Power Management
- RGB Fusion
- Smart Backup
- Smart Keyboard
- Smart TimeLock
- Smart HUD
- System Information Viewer
- USB Blocker
- V-Tuner
- 2.
Support for Q-Flash
- 3.
Support for Xpress Install
Bundled Software
- 1. Norton® Internet Security (OEM version)
- 2.
cFosSpeed
Operating System
- 1.
Support for Windows 10 64-bit
Form Factor
- 1.
ATX Form Factor; 30.5cm x 24.4cm
Remark
- 1.
Due to different Linux support condition provided
by chipset vendors, please download Linux driver from chipset vendors' website
or 3rd party website.
- 2.
Most hardware/software vendors may no longer
offer drivers to support Win9X/ME/2000/XP. If drivers are available from the
vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference
only. GIGABYTE reserves the right to modify or revise the content at anytime
without prior notice.
* Advertised performance is based on maximum theoretical interface values from
respective Chipset vendors or organization who defined the interface
specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for
system usage and therefore the actual memory size is less than the stated
amount.
