Tech Specs
Device Type

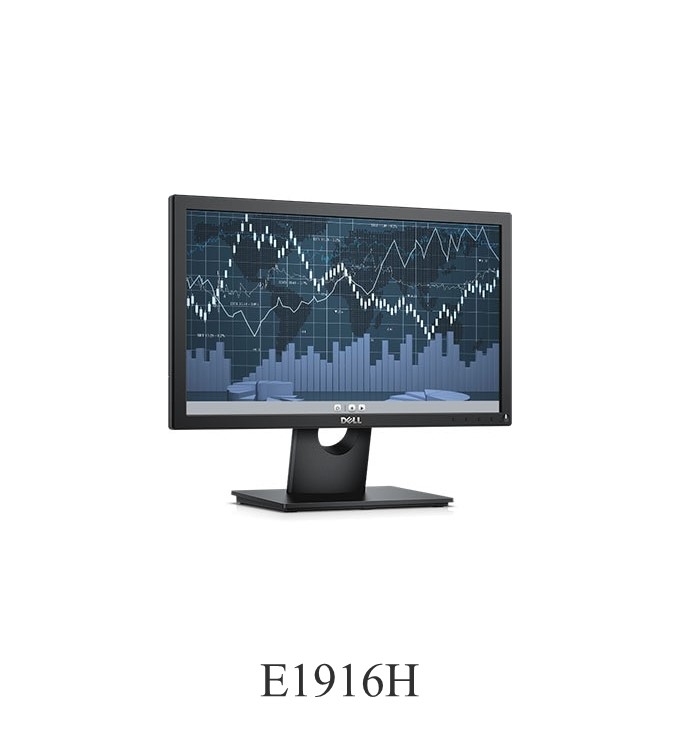

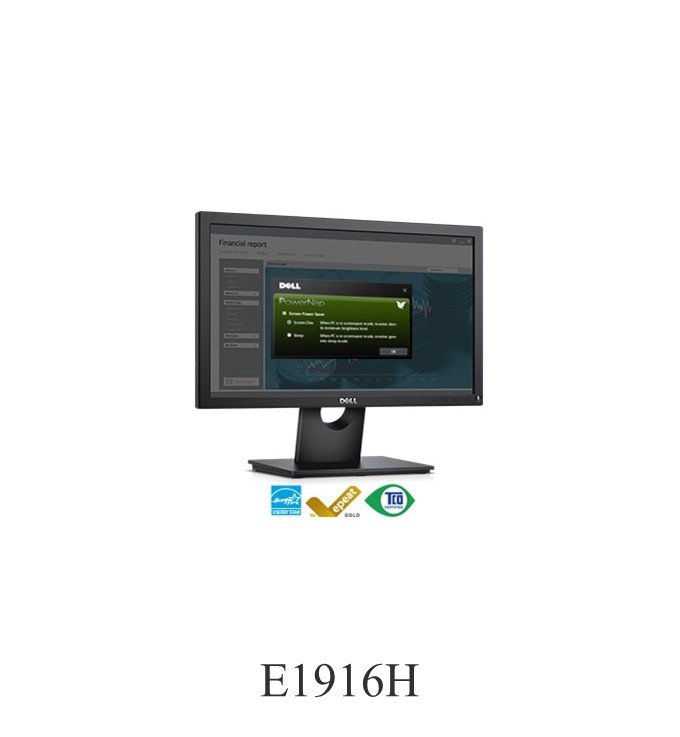

LED-backlit LCD monitor - 19"
Panel Type
TN
Aspect Ratio
16:9
Native Resolution
1366 x 768 at 60 Hz
Pixel Pitch
0.3 mm
Brightness
200 cd/m²
Contrast Ratio
600:1
Response Time
5 ms (black-to-white)
Colour Support
16.7 million colours
Input Connectors
VGA, DisplayPort
Display Position Adjustments
Tilt
Screen Coating
Anti-glare, 3H Hard Coating
Colour
Black
Dimensions (WxDxH) - with stand
44.54 cm x 16.7 cm x 35.9 cm
Weight
2.72 kg
Environmental Standards
ENERGY STAR Qualified
Compliant Standards
Plug and Play, DDC/CI, RoHS, CECP
Manufacturer Warranty
3-year warranty
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
19"
Viewable Size
18.51"
Panel Type
TN
Aspect Ratio
16:9
Native Resolution
1366 x 768 at 60 Hz
Pixel Pitch
0.3 mm
Brightness
200 cd/m²
Contrast Ratio
600:1
Colour Support
16.7 million colours
Response Time
5 ms (black-to-white)
Vertical Refresh Rate
56 - 76 Hz
Horizontal Refresh Rate
30 - 83 kHz
Horizontal Viewing Angle
90
Vertical Viewing Angle
65
Screen Coating
Anti-glare, 3H Hard Coating
Backlight Technology
WLED
OSD Languages
Chinese (simplified), Brazilian Portuguese, English, German, French, Russian, Spanish, Japanese
Features
72% (CIE 1931) colour gamut, 82% (CIE 1976) colour gamut, LED edgelight system, adjustable LED power indicator, Energy Gauge, backlight dimming control
Colour
Black
Dimensions (WxDxH)
44.54 cm x 16.7 cm x 35.9 cm - with stand
Weight
2.72 kg
Connectivity
Interfaces
- DisplayPort
- VGA
Mechanical
Display Position Adjustments
Tilt
Tilt Angle
-6/+22
VESA Mounting Interface
100 x 100 mm
Miscellaneous
Features
Security lock slot (cable lock sold separately), integrated cable management, VESA interface support, Dell Soundbar mounting slots
Included Accessories
Stand, VESA screw cover
Cables Included
1 x DisplayPort cable
Compliant Standards
Plug and Play, DDC/CI, RoHS, CECP
Security Slot Type
Kensington security slot
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
14 Watt
Power Consumption (Off Mode)
0.3 Watt
Software
/ System Requirements
Included Software
Drivers & Utilities, Dell Display Manager
Dimensions
& Weight
Dimensions & Weight Details
- With stand - width: 44.54 cm - depth: 16.7 cm - height: 35.9 cm - weight: 2.72 kg
- Without stand - width: 44.54 cm - depth: 5.15 cm - height: 26.6 cm - weight: 2.26 kg
Environmental
Standards
ENERGY STAR Certified
Yes
Manufacturer
Warranty
Service & Support
Limited warranty - 3 years
Environmental
Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80% (non-condensing)
Compatibility
This product is compatible with the following systems:
- OptiPlex XE2 SFF
- OptiPlex 7050 SFF
- OptiPlex 5055 SFF
- OptiPlex 5055 MT
- OptiPlex 3050 SFF
- OptiPlex 3050 MFF
- OptiPlex 5050 MFF
- OptiPlex 7050 MT
- Precision Workstation T3420
- OptiPlex 3040 Micro
- OptiPlex 7040 MT
- OptiPlex 3050 MT
- OptiPlex 5050 MT
- OptiPlex 5050 SFF
- OptiPlex 7050 MFF
